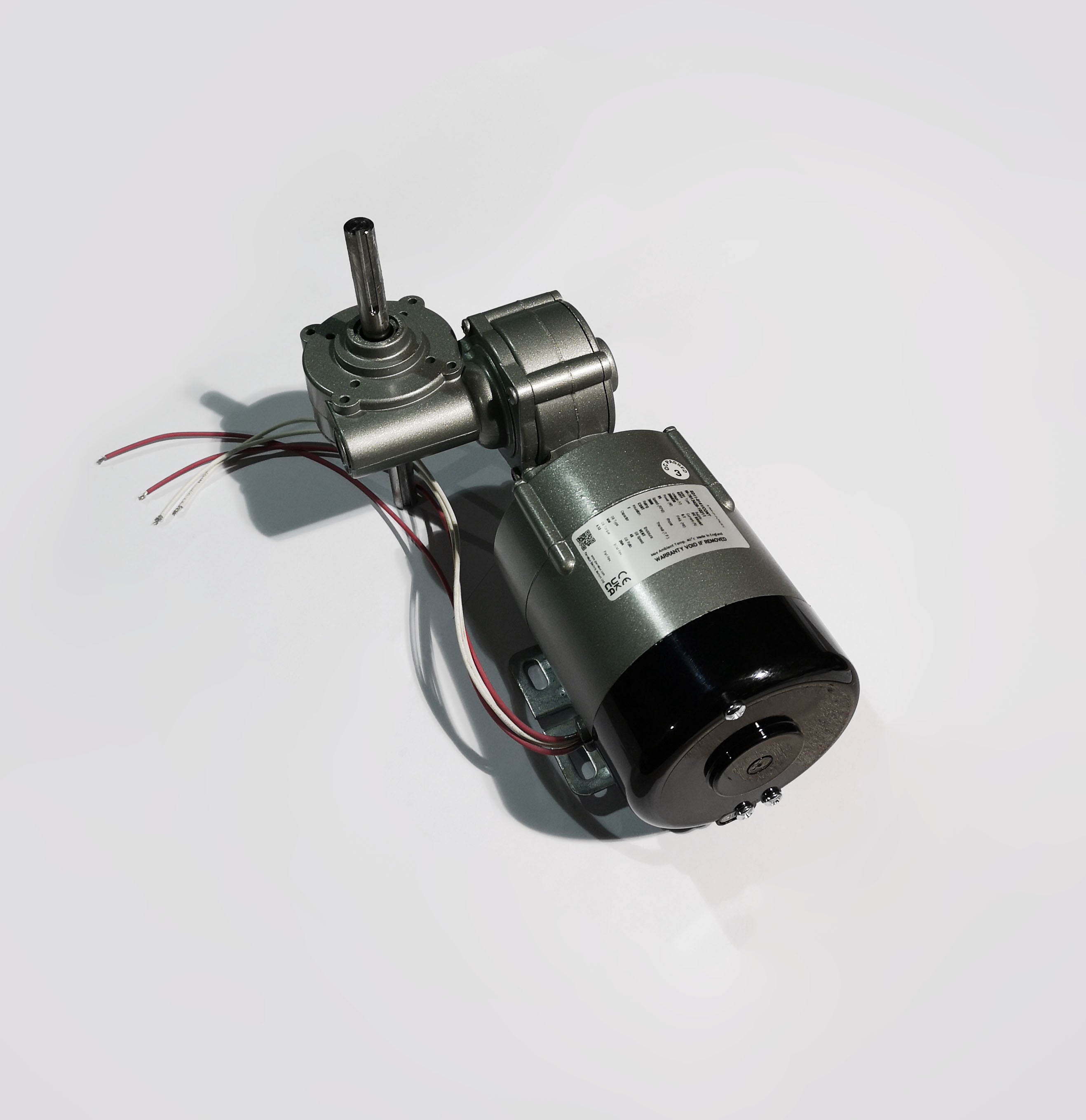

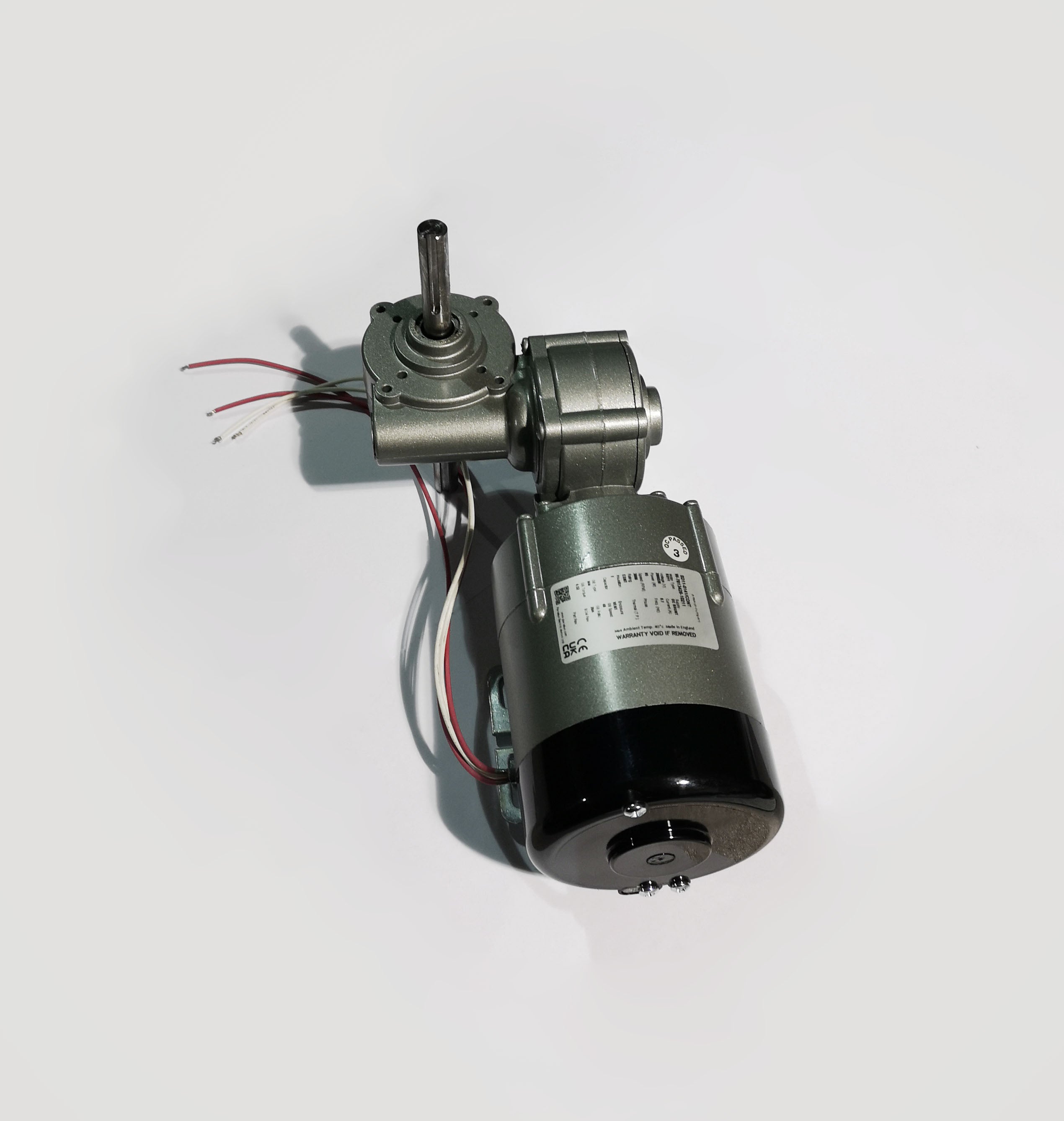

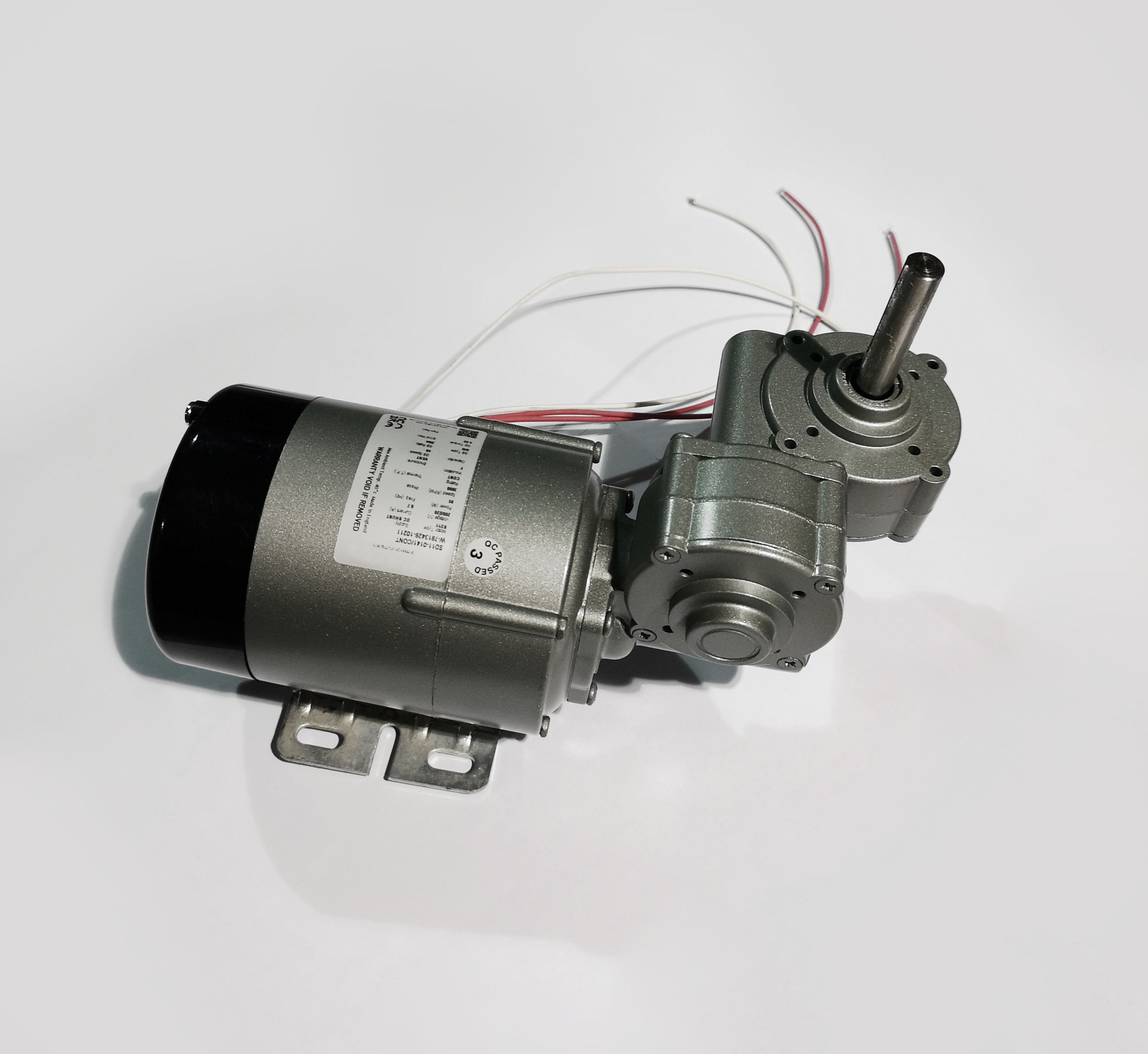

The E11034 Motor Gearbox Parvalux Unit (Ref: SD11-0141/CONT W-9933034-11163) is a robust and efficient motor-gearbox combination designed for use in King packaging machines. With a motor type of SD11 and operating voltage of 200/220V DC, this unit delivers reliable power for high-performance applications. The motor provides a power output of 95W and operates at a speed of 3000 RPM, making it ideal for high-demand production environments. The gearbox offers a torque of 4.52 Nm with a speed reduction to 40 RPM, using a gear ratio of 20/4.

Key Specifications:

• Voltage: 200/220V DC
• Power: 95W
• Motor Speed: 3000 RPM
• Gearbox Speed: 40 RPM
• Torque: 4.52 Nm
• Insulation Class: F
• Enclosure: Vented GB
• Shunt Current: 0.7A
• Continuous Rating: CONT

This unit is built for continuous operation and is perfect for use in environments like pharmaceutical and packaging production, where durability and precision are critical.
